The Next Transistor Revolution: Why Taiwan’s Breakthrough Matters More Than You Think
If you’ve ever wondered why your smartphone battery drains faster than your patience in a traffic jam, the answer lies in the tiny transistors powering its processor. These microscopic switches are the unsung heroes of modern technology, but they’ve been hitting a wall in terms of efficiency. That’s why a recent breakthrough by Taiwanese engineers has me genuinely excited—and not just because it’s a technical achievement. It’s a glimpse into a future where devices are faster, cooler, and more energy-efficient.
The Problem with Perfection: Why 2D Transistors Haven’t Taken Over Yet
Two-dimensional materials like molybdenum disulfide (MoS2) have long been hailed as the future of transistors. They’re atomically thin, which means they can pack more power into less space. But here’s the catch: making them work reliably has been like trying to balance a pencil on its tip. The thinner the gate dielectric (the insulating layer controlling the flow of electricity), the better the control—but the worse the electron flow becomes due to interface defects. It’s a tradeoff that’s stumped researchers for years.

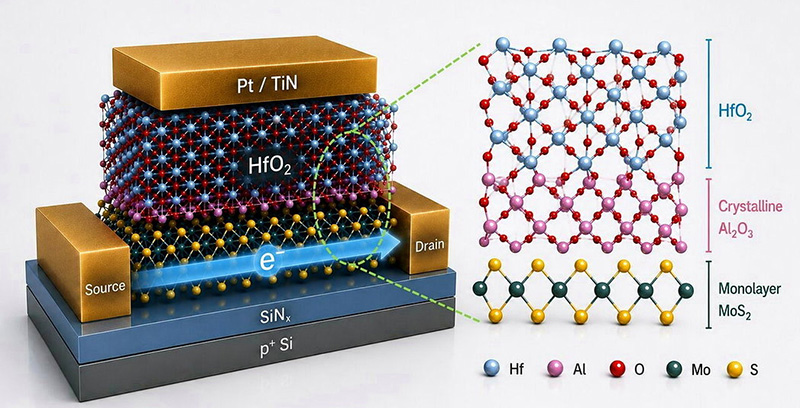

What makes this particularly fascinating is how the Taiwanese team approached the problem. Instead of treating the interface between the MoS2 channel and the gate dielectric as a passive barrier, they turned it into an active player. By depositing an epitaxial aluminum layer and oxidizing it to form an ultrathin buffer, they created a smoother, more orderly interface. This isn’t just clever engineering—it’s a paradigm shift. It’s like realizing the key to a better car isn’t a bigger engine, but a smarter transmission.
The Numbers Don’t Lie—But They Don’t Tell the Whole Story
The resulting transistors achieved an equivalent oxide thickness of about one nanometer, with low leakage current and minimal hysteresis. For the non-engineers in the room, that translates to faster switching speeds and less energy waste. But what really caught my eye was the maximum transconductance of 0.45 mS μm⁻¹. That’s not just a number—it’s a promise. It suggests these transistors could outperform their silicon-based predecessors in ways we’re only beginning to imagine.
Here’s where it gets even more intriguing: the team used CVD-grown MoS2, a method compatible with wafer-scale manufacturing. This isn’t a lab experiment destined to gather dust; it’s a blueprint for mass production. Of course, there’s still work to be done—process optimization, scalability, and cost-effectiveness are all hurdles. But if you take a step back and think about it, this is the kind of incremental progress that leads to revolutions.
Beyond the Lab: What This Means for the Future
Personally, I think this breakthrough is about more than just transistors. It’s a testament to Taiwan’s role as a global innovation hub. While much of the tech world fixates on Silicon Valley, Taiwan has quietly become the epicenter of semiconductor research. TSMC, the world’s largest chip manufacturer, is already a household name in the industry, but collaborations like this one with National Yang Ming Chiao Tung University highlight the power of academia-industry partnerships.
What many people don’t realize is that this kind of innovation has ripple effects far beyond the tech sector. Faster, more efficient transistors could accelerate advancements in AI, quantum computing, and even renewable energy. Imagine solar panels that convert sunlight into electricity with near-perfect efficiency, or AI systems that run on a fraction of the power they currently require. This isn’t just about making your phone last longer on a single charge—it’s about reshaping the technological landscape.
The Bigger Picture: A World of Atomically Thin Possibilities
One thing that immediately stands out is how this research fits into the broader trend of miniaturization. Moore’s Law, the observation that the number of transistors on a chip doubles every two years, has been on life support for a while now. But 2D materials like MoS2 could give it a second wind. If we can master these atomically thin switches, we’re not just extending the lifespan of silicon technology—we’re paving the way for entirely new paradigms.
From my perspective, this raises a deeper question: What does it mean for society when technology advances at this pace? Faster, more efficient devices could democratize access to cutting-edge tools, but they could also widen the gap between those who have access and those who don’t. As we celebrate breakthroughs like this, we also need to think about their ethical and societal implications.
Final Thoughts: A Glimpse of What’s Next
This research is more than a technical achievement—it’s a reminder of human ingenuity’s boundless potential. It’s easy to get caught up in the doom and gloom of the news cycle, but stories like this offer a glimmer of hope. They remind us that even in the face of seemingly insurmountable challenges, we can still innovate, still push the boundaries of what’s possible.
What this really suggests is that the future isn’t just about doing things faster or smaller—it’s about doing them smarter. And if Taiwan’s engineers have anything to say about it, that future is closer than we think.
